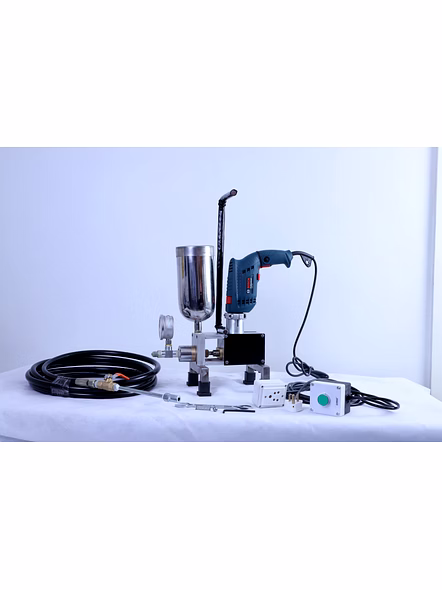

SINGLE COMPONENT INJECTION GROUTING MACHINE

Specifications:
 Gross: 9.00 Kg
 Max Output Pressure: 11000 PSI
 Star-up: < 7500 PSI
 Safety Scope of High-pressure pipe: < 14000 PSI
 Safety Scope of On-off Valve: < 18000 PSI
 Safety Scope of Butter Head: < 16000 PSI

Standard Specification:
 Machine Body
 5 meters high pressure pipe
 Switch Valve Suit(including Butter Head)
 Electric Drill Machine
 Maintenance Saddlebag.
 Discharge-0.9lpm.
 Single line discharge for pre-mixed resins
 Light weight & simple operation
 Remote switch operated
 Easy flush after usage

Application Scope:

•  For the crack, flexing crack, construction crack, and instruction crack of
• building and concrete project.
•  Cracking of building, girder, pole, board etc. structure, inject epoxy resin with
• high-handed.
•  Leak stopping for underground, tunnel, culvert, sewage disposing pool, concrete
• fissure.
•  Leak stopping for floor, wall pipe, and wall corner
•  Grouting of reservoir and dam for the water conservancy project, leak stopping of
• the water transporting tunnel, seepage control of the concrete crack of the
• embankment.
•  Leak stopping for basement, underground garage, and underground channels.
•  Leak stopping for the breast wall of artesian well in geologic drilling project.
